P90-12LA48-480
General Product Information

Product Series: Reassurance (Stationary)
Output: Watts / kW
Battery Capacity: 0.0 kWh

Product Overview

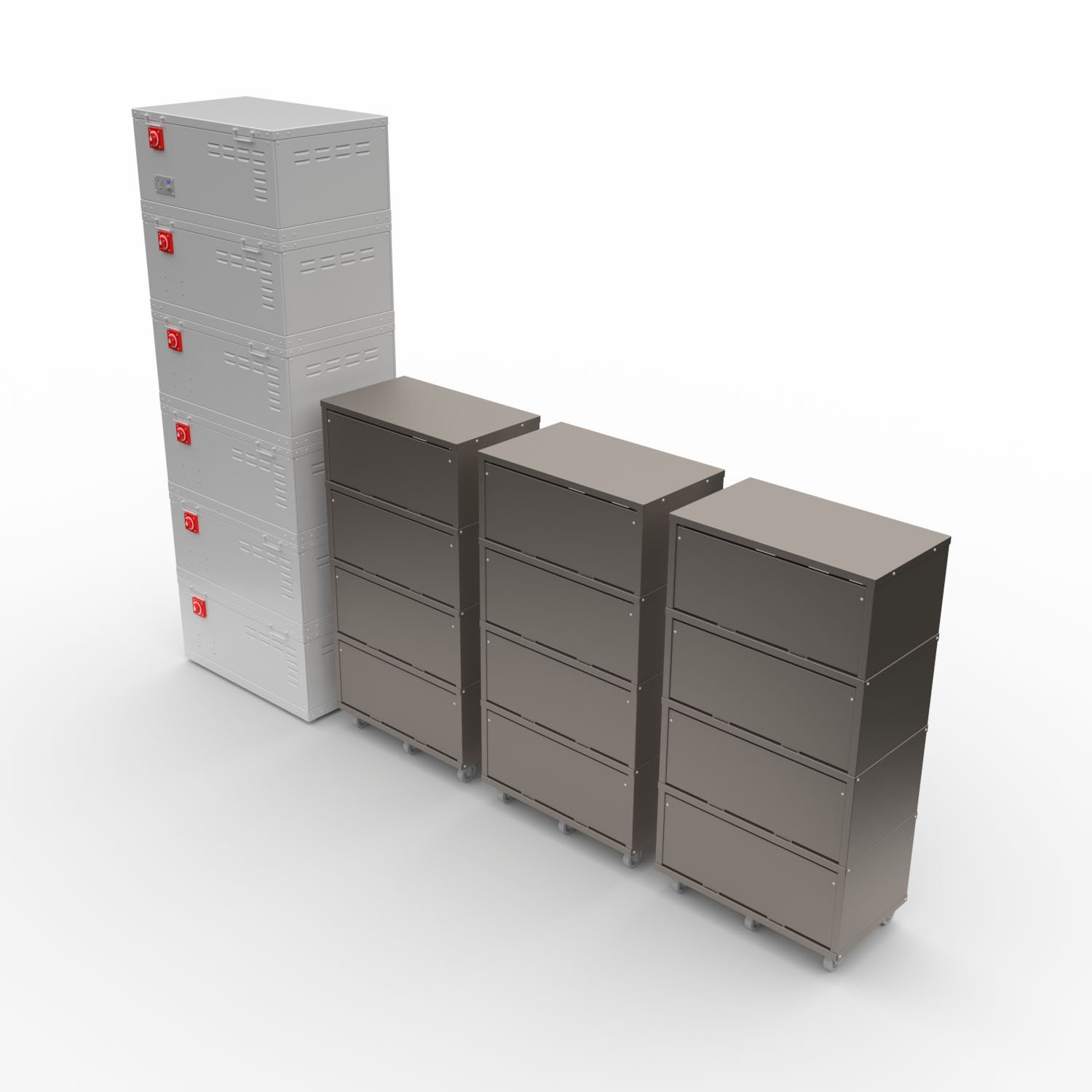

Our P90-12LA48-480 UPS system delivers 90000 watts of Three-phase power with a 57.6 KWH battery bank, ready to activate instantly during an outage.

This free standing hardwire system has a single branch output, and easily integrates into your building's electrical system. Its compact design makes it suitable for places where space is limited while its bigger capacity ensures uninterrupted power with large power and time requirements.
Wiring Diagram

Diagram shows power flow and schematics only; see the table on the next page for exact quantities of connections and controls.

281 FIELDS LANE - SUITE 2B - BREWSTER, NY 10509 1-800-765-3237 | www.mediproducts.net
P90-12LA48-480
AC Electrical Specifications
General AC Input Line Power Output Load Power
Wattage Voltage 480 Voltage 480
Phase Type Three Conductor Size 4 AWG Conductor Size 4 AWG
Surge Wattage 120000 Amperage 100 Amperage 80
Frequency 60 Wire Configuration Hot, Hot, Hot, Neutral, Ground Wire Configuration Hot, Hot, Hot, Neutral, Ground
Waveform Pure Connection Spec Terminal Block Outlets/Breakers
Transfer Time 20 ms Connection Type
Bypass Switch Not Included
DC Electrical Specifications Available Accessories
Battery Type AGM Lead Acid Power Outage Alert Optional
Battery Capacity 0.0 kWh Remote Battery Monitor Yes
DC Voltage 48 Alarm Dry Contacts Yes
Standards
Inverter UL 1741
Battery UL 94V-0
Enclosure/System Specifications
Cabinet Material Stainless Steel Tower Count 4 Height (in) 93
Inverter Cabinet Count Weight 3610 lb Width (in) 130
Battery Module Count 12 Heat Output 8190 BTU Depth (in) 22
Dimensional Drawing
Dimensional Drawing
