SaverCell
General Product Information

Product Series: Saver Cell (Portable)
Output: 1500 Watts / kW
Battery Capacity: 2.1 kWh

Product Overview

Our SaverCell UPS system delivers 1500 watts of Single-phase power with a 2.08 KWH battery bank, ready to activate instantly during an outage.

This free-standing and extremely compact plug & play system takes up very little space and can be placed almost anywhere, or on the available custom-designed shelf. It features a lithium-ion battery ensuring an efficient, long-lasting and powerful backup solution for smaller appliances. Its size enables us to ship it using common couriers.
Wiring Diagram

Diagram shows power flow and schematics only; see the table on the next page for exact quantities of connections and controls.

281 FIELDS LANE - SUITE 2B - BREWSTER, NY 10509 1-800-765-3237 | www.mediproducts.net
SaverCell
AC Electrical Specifications
General AC Input Line Power Output Load Power
Wattage 1500 Voltage 120 Voltage 120
Phase Type Single Conductor Size 14 AWG Conductor Size 14 AWG
Surge Wattage 3000 Amperage 15 Amperage 15
Frequency 60 Wire Configuration Hot, Neutral, Ground Wire Configuration Hot, Neutral, Ground
Waveform Pure Connection Spec Outlets/Breakers 3
Transfer Time 20 ms Connection Type Duplex Receptacle NEMA 5-15R
DC Electrical Specifications Available Accessories
Battery Type Lithium Ion Power Outage Alert Optional
Battery Capacity 2.1 kWh Remote Battery Monitor Yes
DC Voltage 48 Alarm Dry Contacts Yes
Standards
Inverter UL 1642
Battery UL 1973
Enclosure/System Specifications
Cabinet Material ABS Plastic Tower Count 1 Height (in) 12
Inverter Cabinet Count Weight 53 lb Width (in) 19
Battery Module Count Heat Output 565 BTU Depth (in) 9

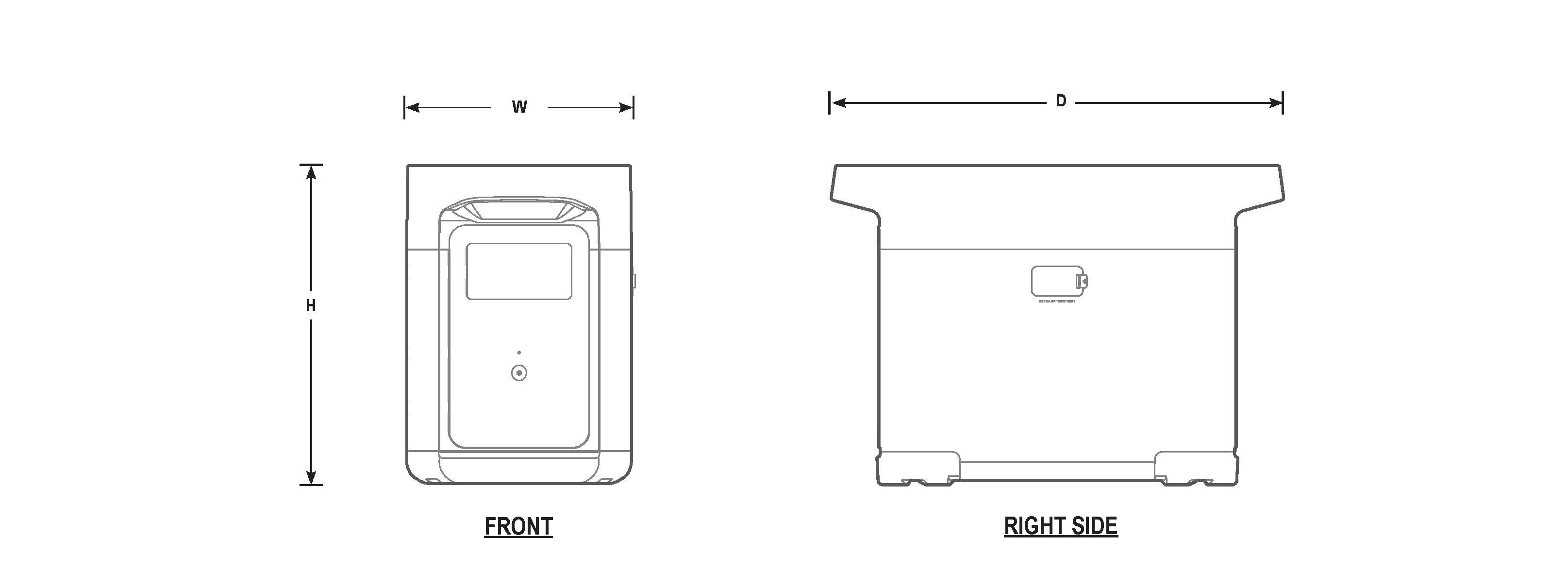

Dimensional Drawing
Dimensional Drawing
