SSH150240V-3PH
General Product Information

Product Series: Silent Sentry (Wall Mounted)
Output: 15000 Watts / kW
Battery Capacity: 28.8 kWh

Product Overview

Our SSH150240V-3PH UPS system delivers 15000 watts of Three-phase power with a 28.8 KWH battery bank, ready to activate instantly during an outage.

This hardwired system is ideal for both new construction and remodels, and can be installed anywhere within your facility. It’s designed to power appliances across multiple rooms by serving output branch circuits, all while occupying minimal to no floor space.
Wiring Diagram
281 FIELDS LANE - SUITE 2B - BREWSTER, NY 10509 1-800-765-3237 | www.mediproducts.net
SSH150240V-3PH
AC Electrical Specifications
General AC Input Line Power Output Load Power
Wattage 15000 Voltage 208 Voltage 208
Phase Type Three Conductor Size 6 AWG Conductor Size 6 AWG
Surge Wattage 30000 Amperage 60 Amperage 60
Frequency 60 Wire Configuration Hot, Hot, Hot, Neutral, Ground Wire Configuration Hot, Hot, Hot, Neutral, Ground
Waveform Pure Connection Spec Outlets/Breakers 0
Transfer Time 20 ms Connection Type 3 Pole Breaker
DC Electrical Specifications Available Accessories
Battery Type AGM Lead Acid Power Outage Alert Optional
Battery Capacity 28.8 kWh Remote Battery Monitor Yes
DC Voltage 48 Alarm Dry Contacts Yes
Standards
Inverter UL 1741
Battery UL 94V-0
Enclosure/System Specifications
Cabinet Material White Coated Steel Tower Count 3 Height (in) 99
Inverter Cabinet Count Weight 2262 lb Width (in) 55
Battery Module Count Heat Output 5118 BTU Depth (in) 12

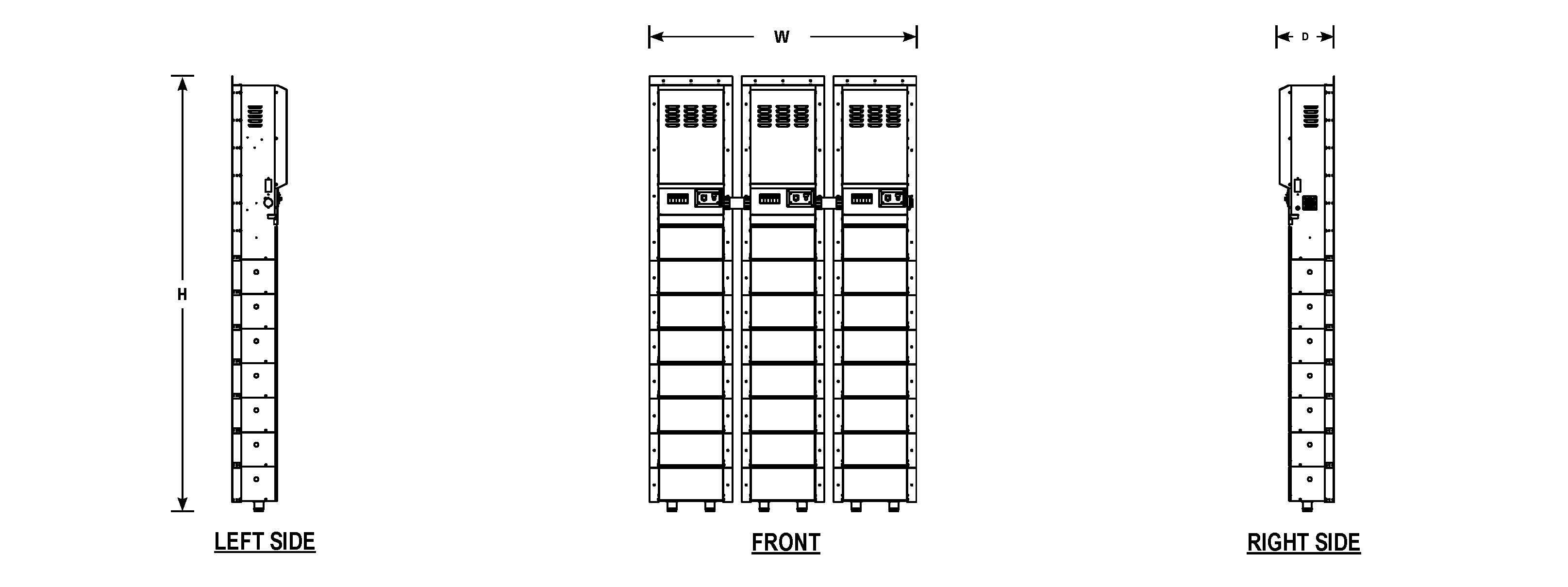

Dimensional Drawing
Dimensional Drawing
