MHW200120V
General Product Information

Product Series: Reassurance (Stationary)
Output: 20000 Watts / kW
Battery Capacity: 14.4 kWh

Product Overview

Our MHW200120V UPS system delivers 20000 watts of Split-phase power with a 14.4 KWH battery bank, ready to activate instantly during an outage.

This free standing hardwire system wheels into place and with a single branch output it easily integrates into your building’s electrical system. Its compact design makes it suitable for places where space is limited while its bigger capacity ensures uninterrupted power with large power and time requirements.
Wiring Diagram

Diagram shows power flow and schematics only; see the table on the next page for exact quantities of connections and controls.

281 FIELDS LANE - SUITE 2B - BREWSTER, NY 10509 1-800-765-3237 | www.mediproducts.net
MHW200120V
AC Electrical Specifications
General AC Input Line Power Output Load Power
Wattage 20000 Voltage Standard 208, Specify 240 Voltage Standard 208, Specify 240
Phase Type Split Conductor Size 4 AWG Conductor Size 4 AWG
Surge Wattage 40000 Amperage 100 Amperage 80
Frequency 60 Wire Configuration Hot, Hot, Neutral, Ground Wire Configuration Hot, Hot, Neutral, Ground
Waveform Pure Connection Spec Terminal Block Outlets/Breakers 1
Transfer Time 20 ms Connection Type 2 Pole Breaker
DC Electrical Specifications Available Accessories
Battery Type AGM Lead Acid Power Outage Alert Optional
Battery Capacity 14.4 kWh Remote Battery Monitor Yes
DC Voltage 48 Alarm Dry Contacts Yes
Standards
Inverter UL 1741
Battery UL 94V-0
Enclosure/System Specifications
Cabinet Material Stainless Steel Tower Count 2 Height (in) 67
Inverter Cabinet Count Weight 1283 lb Width (in) 28
Battery Module Count Heat Output 2730 BTU Depth (in) 16

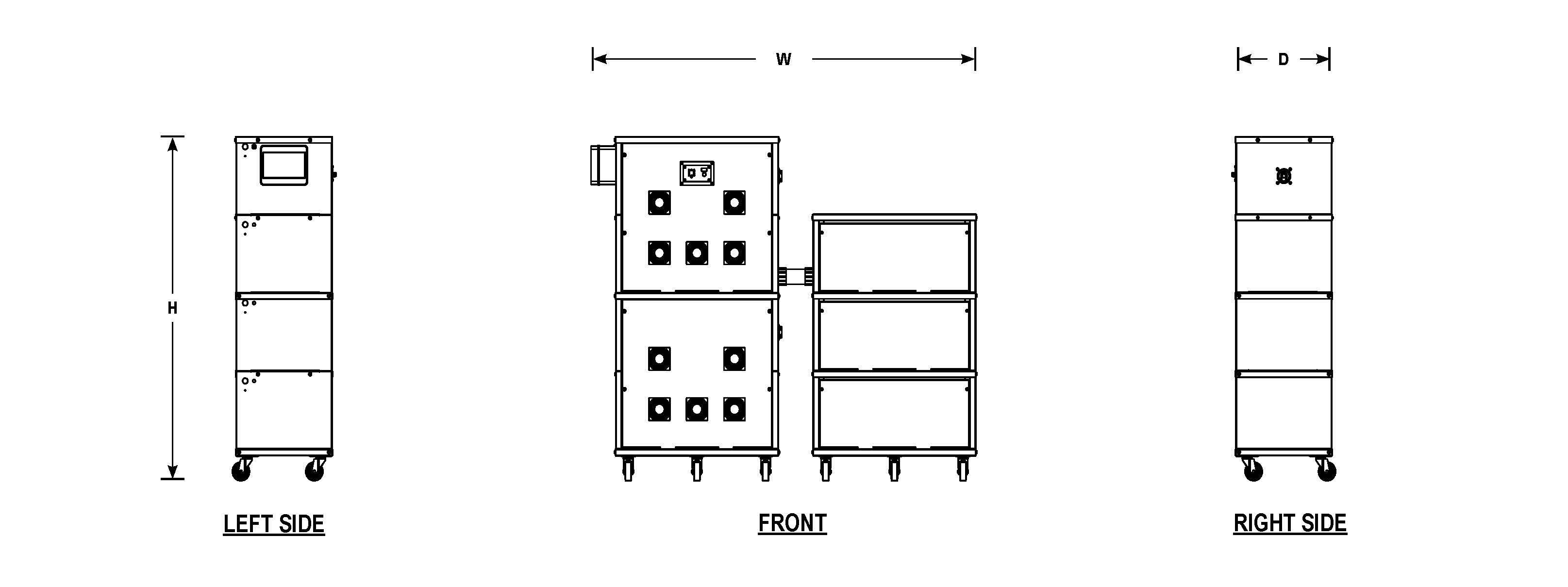

Dimensional Drawing
Dimensional Drawing
