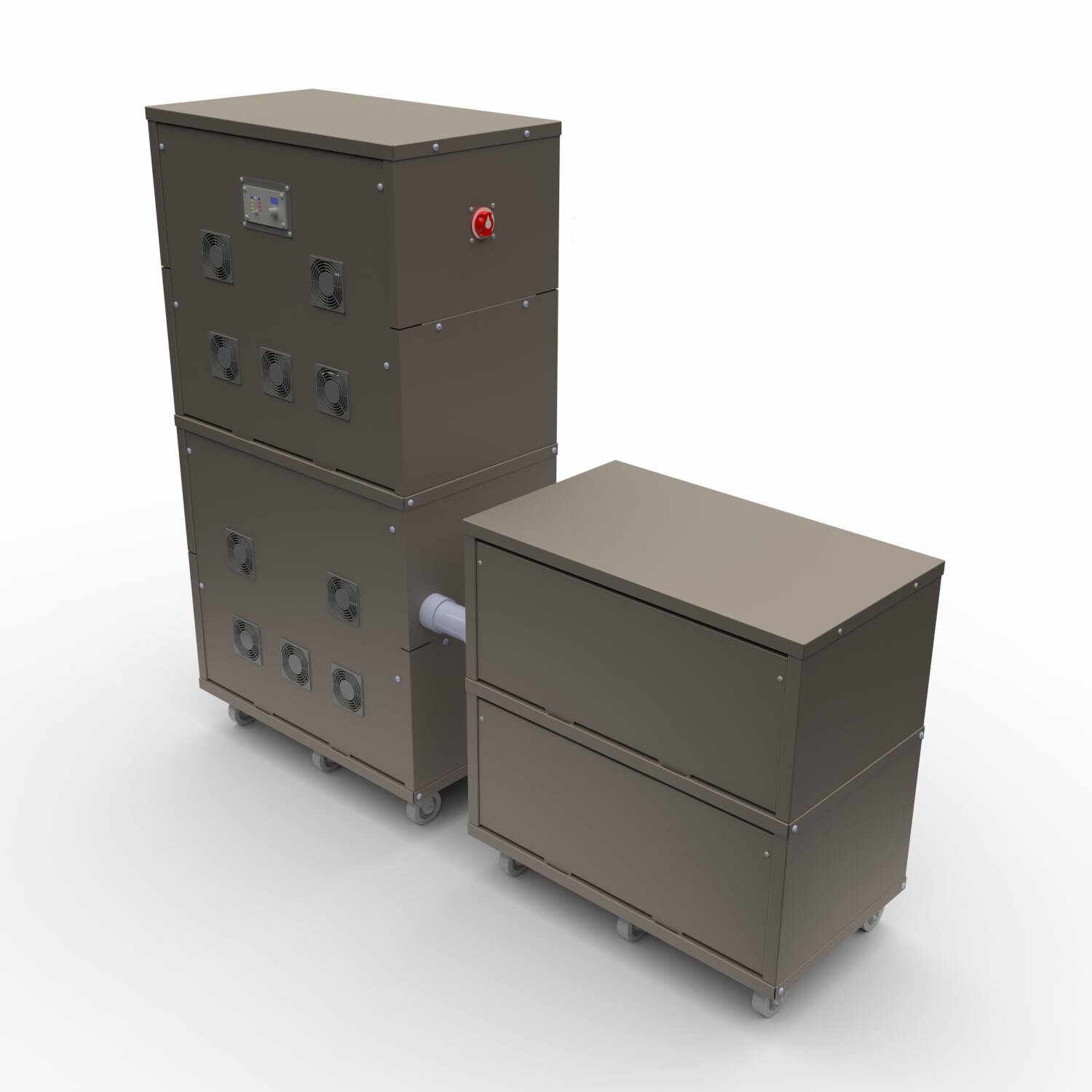

General Product Information
Product Series: Reassurance (Stationary)
|
|
||||
Wiring Diagram
Diagram shows power flow and schematics only; see the table on the next page for exact quantities of connections and controls. |
|||||
|
|||||
|
||
| AC Electrical Specifications | |||||
|---|---|---|---|---|---|
| General AC | Input Line Power | Output Load Power | |||
| Wattage | 21600 | Voltage | 208 | Voltage | 208 |
| Phase Type | Three | Conductor Size | 4 AWG | Conductor Size | 6 AWG |
| Surge Wattage | 43200 | Amperage | 80 | Amperage | 60 |
| Frequency | 60 | Wire Configuration | Hot, Hot, Hot, Neutral, Ground | Wire Configuration | Hot, Hot, Hot, Neutral, Ground |
| Waveform | Pure | Connection Spec | Terminal Block | Outlets/Breakers | 1 |
| Transfer Time | 100 ms | Connection Type | 3 Pole Breaker | ||
| DC Electrical Specifications | Available Accessories | ||
|---|---|---|---|
| Battery Type | AGM Lead Acid | Power Outage Alert | Optional |
| Battery Capacity | 9.6 kWh | Remote Battery Monitor | Yes |
| DC Voltage | 48 | Alarm Dry Contacts | Yes |
| Standards | |
|---|---|
| Inverter | UL 1741, CSA C22.2 No. 107.1, UL 1778, Annex FF? |
| Battery | UL 94V-0 |
| Enclosure/System Specifications | |||||
|---|---|---|---|---|---|
| Cabinet Material | Stainless Steel | Tower Count | 2 | Height (in) | 55 |
| Inverter Cabinet Count | 2 | Weight | 1120 lb | Width (in) | 28 |
| Battery Module Count | 2 | Heat Output | 5160 BTU | Depth (in) | 16 |

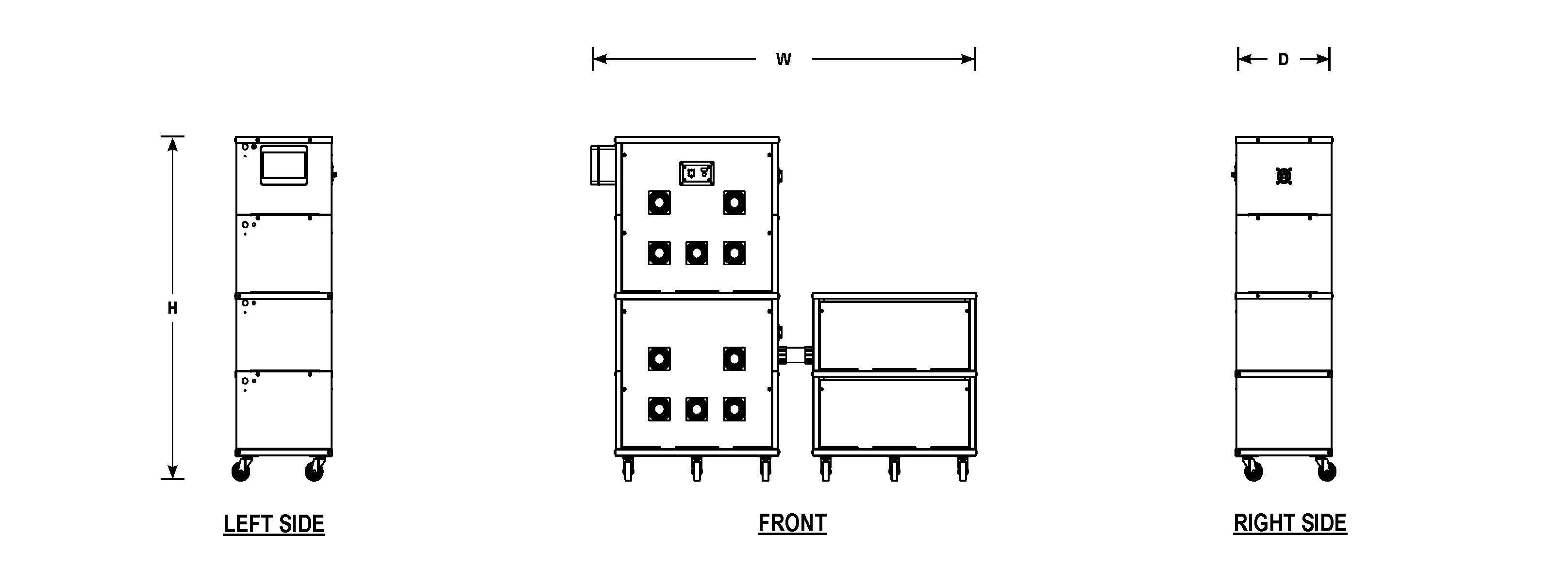

Dimensional Drawing
|
||||||
|
||||||
