SSH4060V 7.2 KWH

SSH4060V

General Product Information

Product Series: Silent Sentry (Wall Mounted)
Output: 4000 Watts / kW
Battery Capacity: 7.2 kWh

Product Overview

Our SSH4060V UPS system delivers 4000 watts of Split-phase power with a 7.2 KWH battery bank, ready to activate instantly during an outage.

This hardwired system is ideal for both new construction and remodels, and can be installed anywhere within your facility. It�s designed to power appliances across multiple rooms by serving output branch circuits, all while occupying minimal to no floor space.

Wiring Diagram

Diagram shows power flow and schematics only; see the table on the next page for exact quantities of connections and controls.

281 FIELDS LANE - SUITE 2B - BREWSTER, NY 10509

1-800-765-3237 | www.mediproducts.net

SSH4060V

AC Electrical Specifications
General AC		Input Line Power		Output Load Power
Wattage	4000	Voltage	Standard 208, Specify 240	Voltage	Standard 208, Specify 240
Phase Type	Split	Conductor Size	12 AWG	Conductor Size	12 AWG
Surge Wattage	8000	Amperage	20	Amperage	20
Frequency	60	Wire Configuration	Hot, Hot, Neutral, Ground	Wire Configuration	Hot, Hot, Neutral, Ground
Waveform	Pure	Connection Spec	Terminal Block	Outlets/Breakers	1
Transfer Time	20 ms			Connection Type	2 Pole Breaker

DC Electrical Specifications		Available Accessories
Battery Type	AGM Lead Acid	Power Outage Alert	Optional
Battery Capacity	7.2 kWh	Remote Battery Monitor	Yes
DC Voltage	24	Alarm Dry Contacts	Yes

Standards
Inverter	UL 1741
Battery	UL 94V-0

Enclosure/System Specifications
Cabinet Material	White Coated Steel	Tower Count	1	Height (in)	91
Inverter Cabinet Count	1	Weight	582 lb	Width (in)	14
Battery Module Count	6	Heat Output	818 BTU	Depth (in)	12

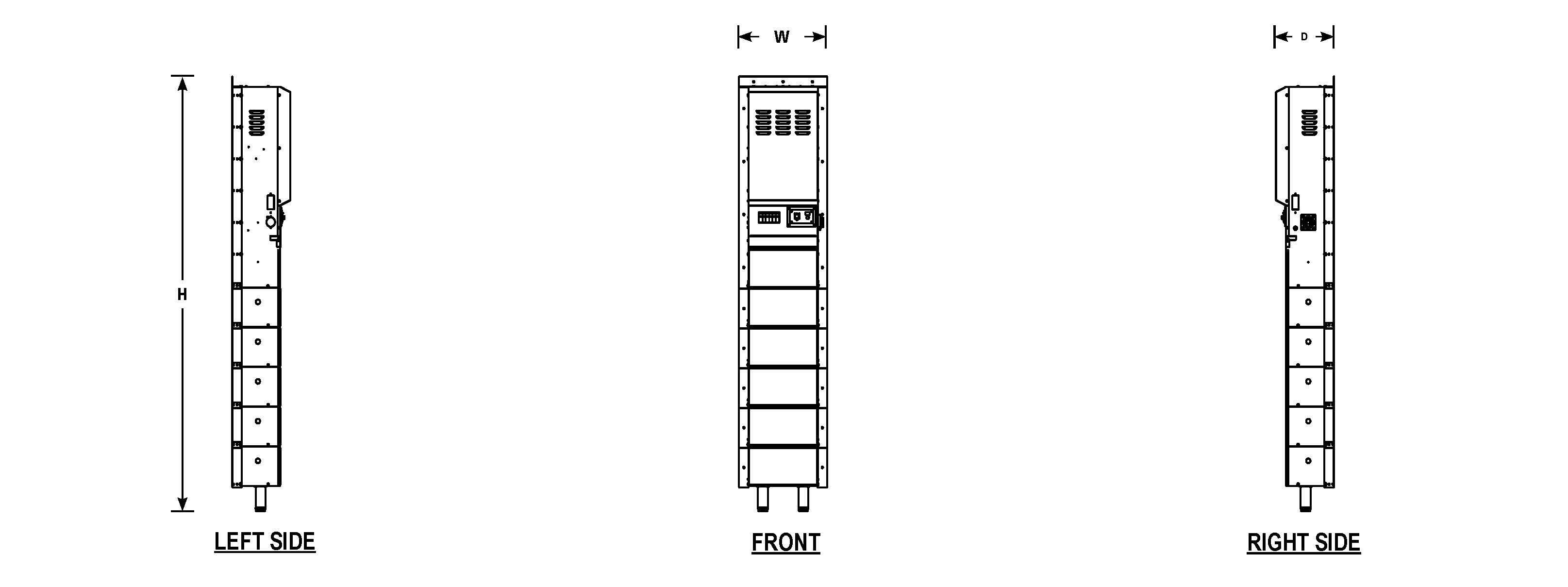

Dimensional Drawing

Dimensional Drawing
