SSH6060V-3PH
General Product Information

Product Series: Silent Sentry (Wall Mounted)
Output: 6000 Watts / kW
Battery Capacity: 7.2 kWh

Product Overview

Our SSH6060V-3PH UPS system delivers 6000 watts of Three-phase power with a 7.2 KWH battery bank, ready to activate instantly during an outage.

This hardwired system is ideal for both new construction and remodels, and can be installed anywhere within your facility. It’s designed to power appliances across multiple rooms by serving output branch circuits, all while occupying minimal to no floor space.

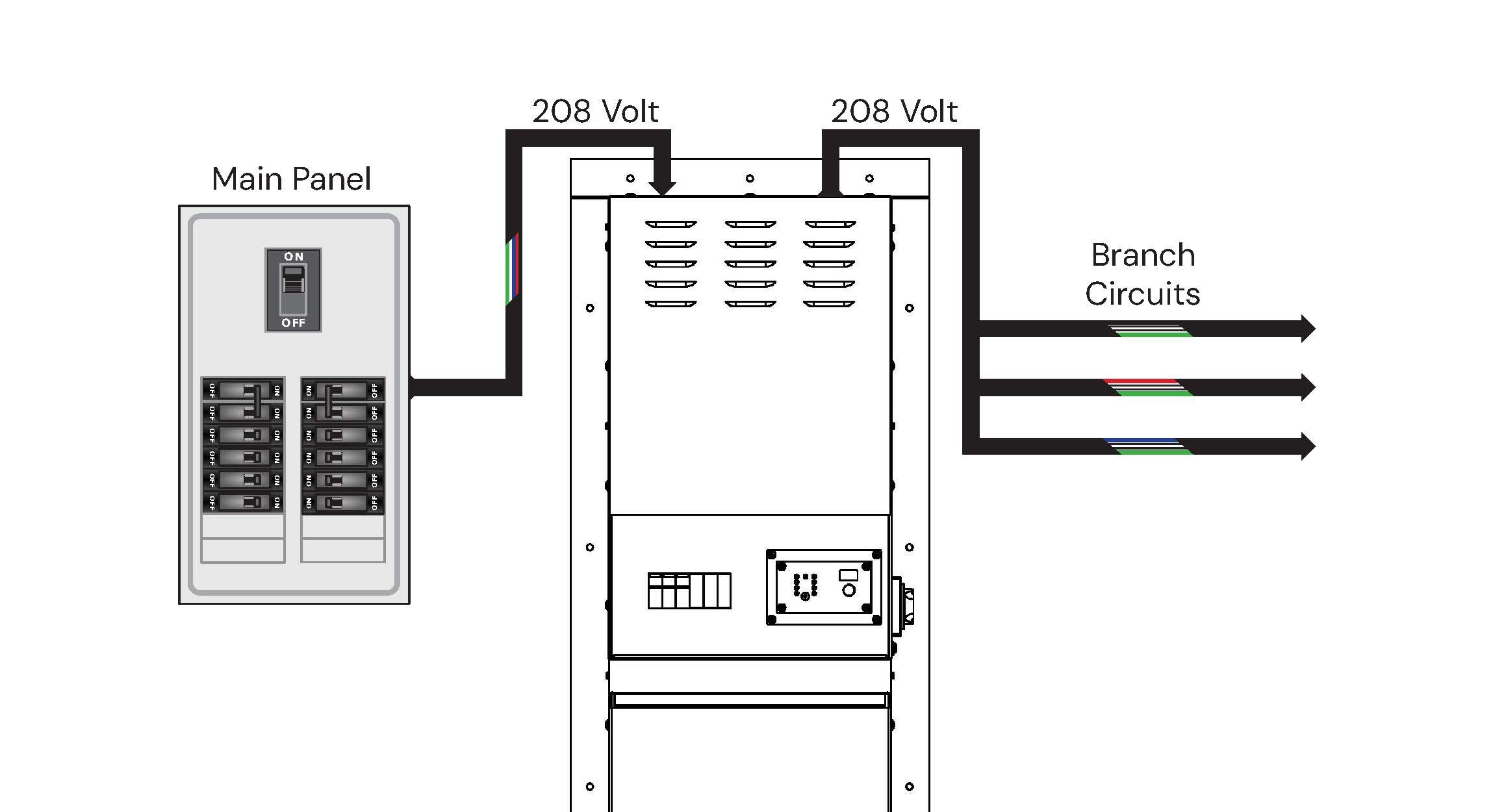

Wiring Diagram
281 FIELDS LANE - SUITE 2B - BREWSTER, NY 10509 1-800-765-3237 | www.mediproducts.net
SSH6060V-3PH
AC Electrical Specifications
General AC Input Line Power Output Load Power
Wattage 6000 Voltage 208 Voltage 208
Phase Type Three Conductor Size 10 AWG Conductor Size 10 AWG
Surge Wattage 12000 Amperage 30 Amperage 30
Frequency 60 Wire Configuration Hot, Hot, Hot, Neutral, Ground Wire Configuration Hot, Hot, Hot, Neutral, Ground
Waveform Pure Connection Spec Outlets/Breakers 0
Transfer Time 20 ms Connection Type 3 Pole Breaker
DC Electrical Specifications Available Accessories
Battery Type AGM Lead Acid Power Outage Alert Optional
Battery Capacity 7.2 kWh Remote Battery Monitor Yes
DC Voltage 24 Alarm Dry Contacts Yes
Standards
Inverter UL 1741
Battery UL 94V-0
Enclosure/System Specifications
Cabinet Material White Coated Steel Tower Count 3 Height (in) 83
Inverter Cabinet Count Weight 705 lb Width (in) 55
Battery Module Count Heat Output 1227 BTU Depth (in) 10
Dimensional Drawing
Dimensional Drawing
