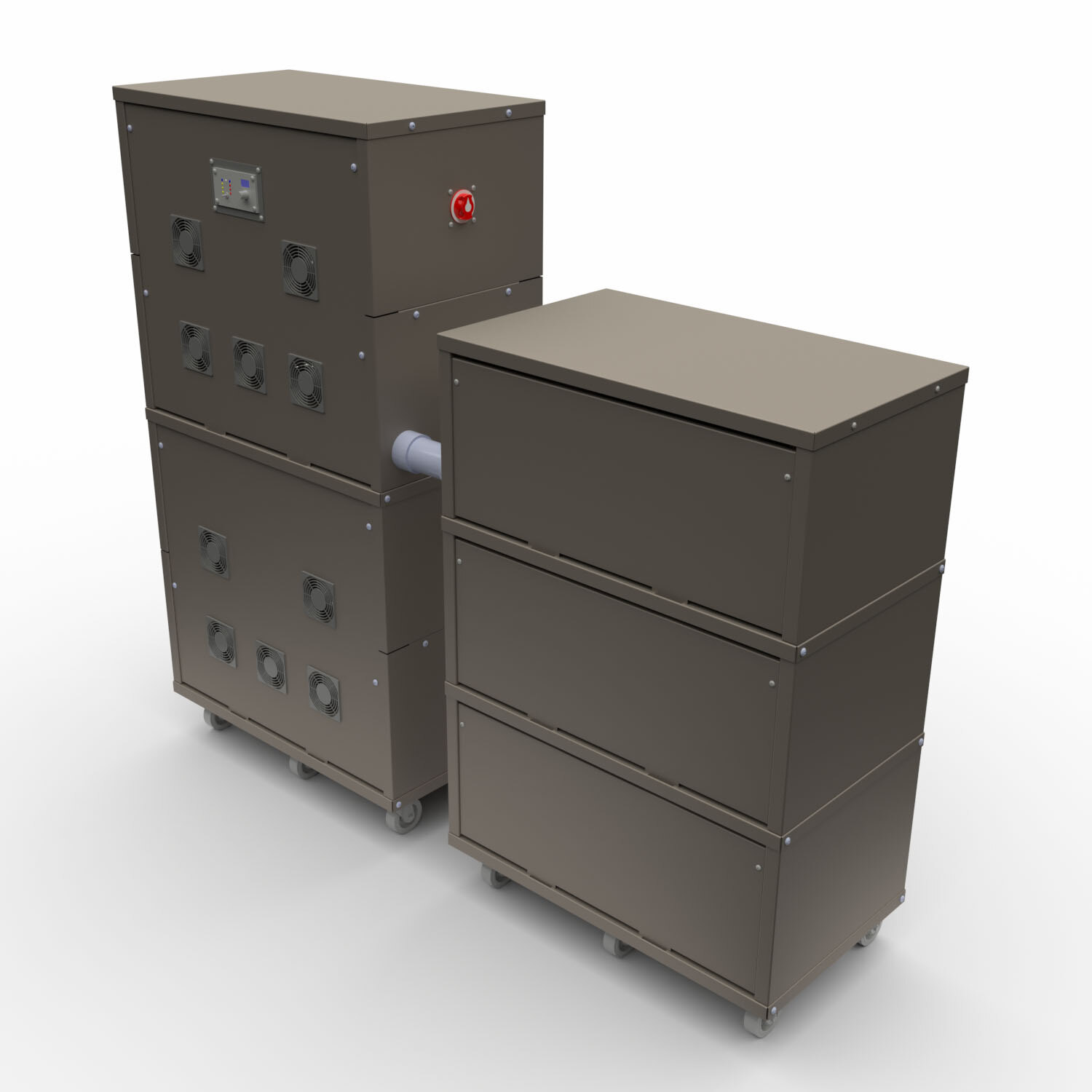

MHW21.6120O-3PH
General Product Information

Product Series: Reassurance (Stationary)
Output: 21600 Watts / kW
Battery Capacity: 14.4 kWh

Product Overview

Our MHW21.6120O-3PH UPS system delivers 21600 watts of Three-phase power with a 14.4 KWH battery bank, ready to activate instantly during an outage.

This free standing hardwire system wheels into place and with a single branch output it easily integrates into your building�s electrical system. Its compact design makes it suitable for places where space is limited while its bigger capacity ensures uninterrupted power with large power and time requirements.
Wiring Diagram
281 FIELDS LANE - SUITE 2B - BREWSTER, NY 10509 1-800-765-3237 | www.mediproducts.net
MHW21.6120O-3PH
AC Electrical Specifications
General AC Input Line Power Output Load Power
Wattage 21600 Voltage 208 Voltage 208
Phase Type Three Conductor Size 4 AWG Conductor Size 6 AWG
Surge Wattage 43200 Amperage 80 Amperage 60
Frequency 60 Wire Configuration Hot, Hot, Hot, Neutral, Ground Wire Configuration Hot, Hot, Hot, Neutral, Ground
Waveform Pure Connection Spec Terminal Block Outlets/Breakers 0
Transfer Time 100 ms Connection Type 3 Pole Breaker
