MHW400280V 33.6 KWH

MHW400280V ^*

General Product Information

Product Series: Reassurance (Stationary)
Output: 40000 Watts / kW
Battery Capacity: 33.6 kWh

Product Overview

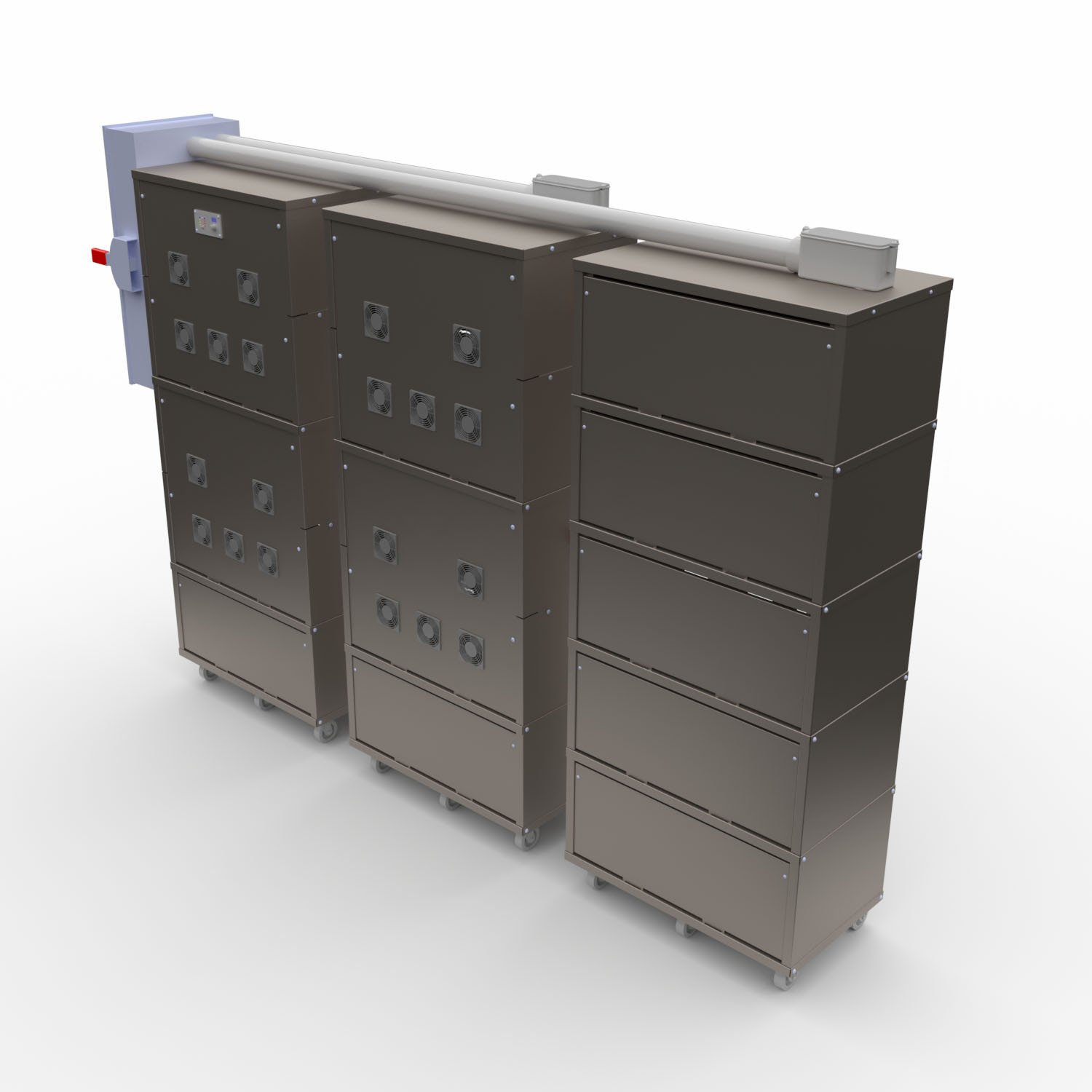

Our MHW400280V UPS system delivers 40000 watts of Split-phase power with a 33.6 KWH battery bank, ready to activate instantly during an outage.

This free standing hardwire system wheels into place and with a single branch output it easily integrates into your building's electrical system. Its compact design makes it suitable for places where space is limited while its bigger capacity ensures uninterrupted power with large power and time requirements.

* Discontinued product

Wiring Diagram

Diagram shows power flow and schematics only; see the table on the next page for exact quantities of connections and controls.

281 FIELDS LANE - SUITE 2B - BREWSTER, NY 10509

1-800-765-3237 | www.mediproducts.net

MHW400280V

AC Electrical Specifications
General AC		Input Line Power		Output Load Power
Wattage	40000	Voltage	Standard 208, Specify 240	Voltage	Standard 208, Specify 240
Phase Type	Split	Conductor Size	2/0 AWG	Conductor Size	2/0 AWG
Surge Wattage	80000	Amperage	150	Amperage	150
Frequency	60	Wire Configuration	Hot, Hot, Neutral, Ground	Wire Configuration	Hot, Hot, Neutral, Ground
Waveform	Pure	Connection Spec	Terminal Block	Outlets/Breakers	1
Transfer Time	20 ms			Connection Type	Transfer Switch
Bypass Switch	Included

DC Electrical Specifications		Available Accessories
Battery Type	AGM Lead Acid	Power Outage Alert	Optional
Battery Capacity	33.6 kWh	Remote Battery Monitor	Yes
DC Voltage	48	Alarm Dry Contacts	Yes

Standards
Inverter	UL 1741
Battery	UL 94V-0

Enclosure/System Specifications
Cabinet Material	Stainless Steel	Tower Count	3	Height (in)	72
Inverter Cabinet Count	4	Weight	2845 lb	Width (in)	102
Battery Module Count	7	Heat Output	5460 BTU	Depth (in)	16

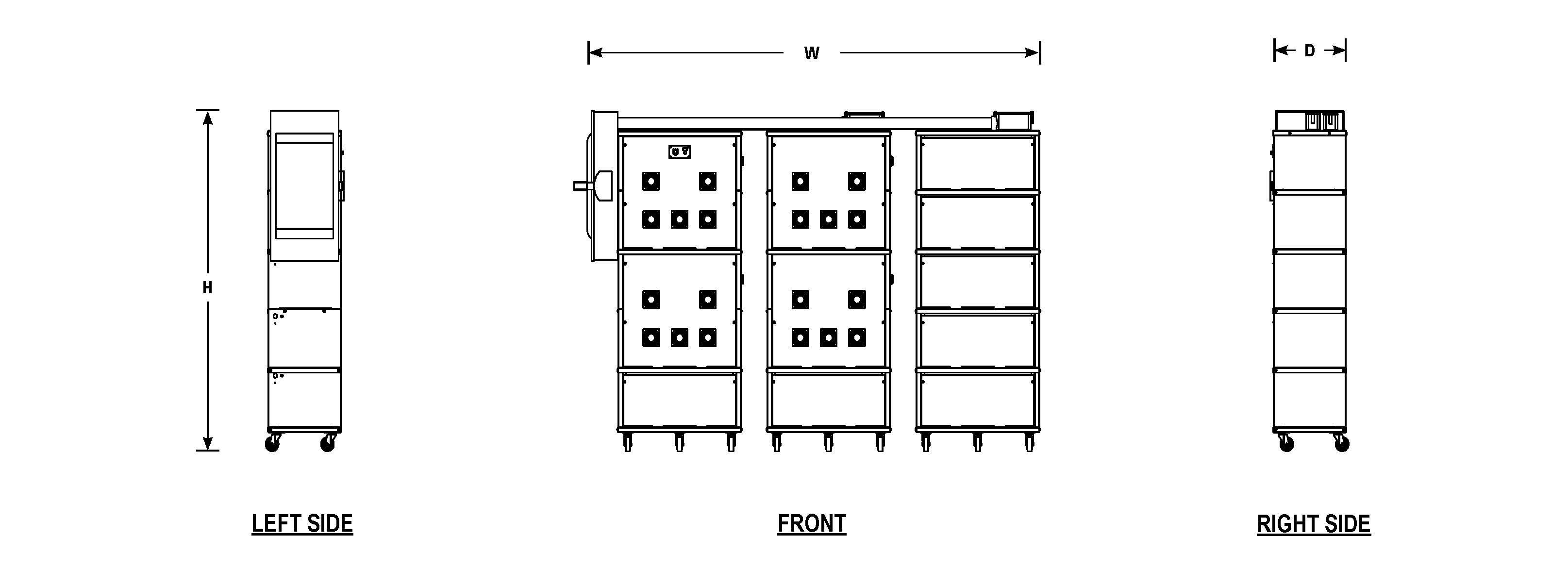

Dimensional Drawing
