SSH50320V
General Product Information

Product Series: Silent Sentry (Wall Mounted)
Output: 5000 Watts / kW
Battery Capacity: 38.4 kWh

Product Overview

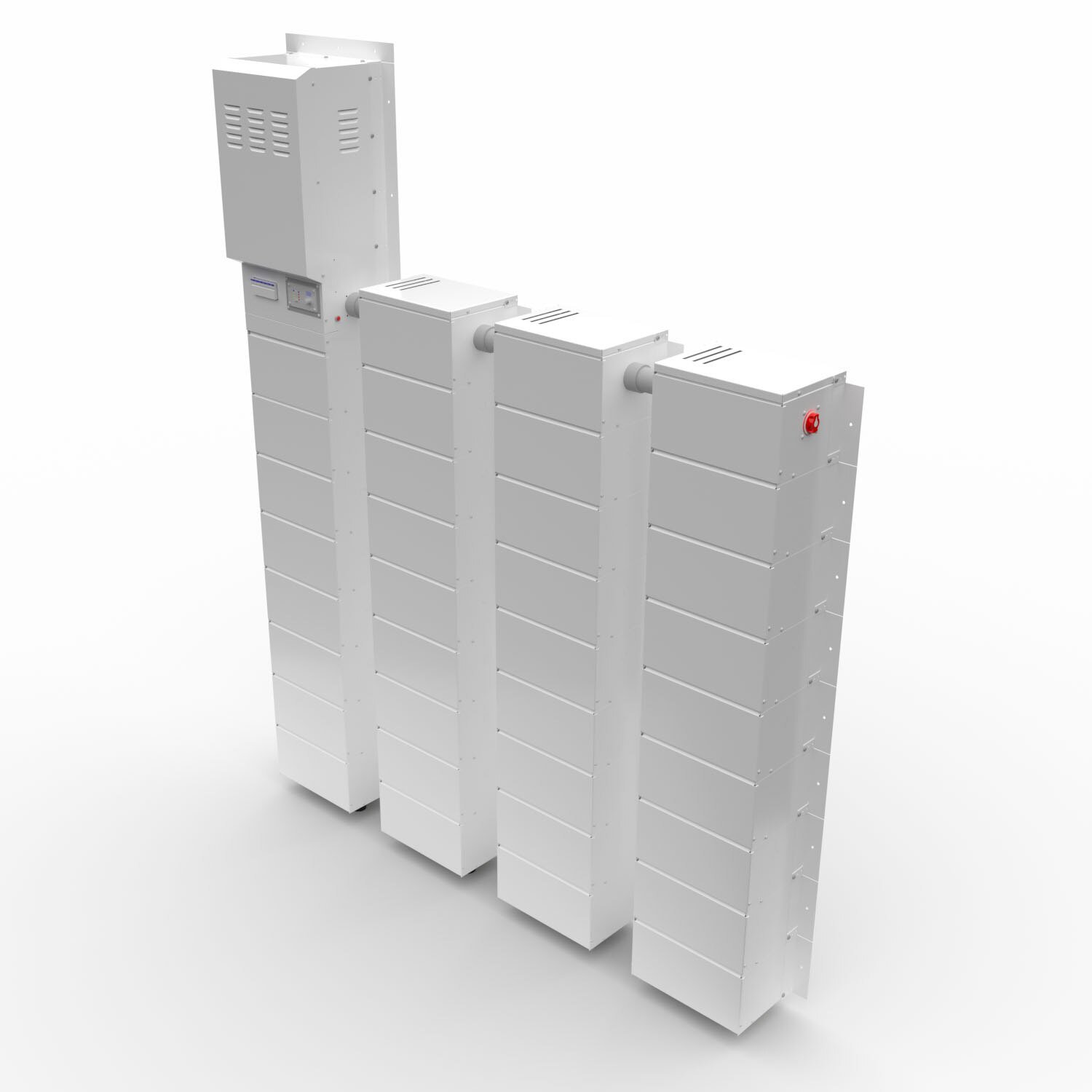

Our SSH50320V UPS system delivers 5000 watts of Single-phase power with a 38.4 KWH battery bank, ready to activate instantly during an outage.

This hardwired system is ideal for both new construction and remodels, and can be installed anywhere within your facility. It’s designed to power appliances across multiple rooms by serving output branch circuits, all while occupying minimal to no floor space.
Wiring Diagram
281 FIELDS LANE - SUITE 2B - BREWSTER, NY 10509 1-800-765-3237 | www.mediproducts.net
SSH50320V
AC Electrical Specifications
General AC Input Line Power Output Load Power
Wattage 5000 Voltage 120 Voltage 120
Phase Type Single Conductor Size 6 AWG Conductor Size 12 AWG
Surge Wattage 10000 Amperage 50 Amperage 20
Frequency 60 Wire Configuration Hot, Neutral, Ground Wire Configuration Hot, Neutral, Ground
Waveform Pure Connection Spec Outlets/Breakers 0
Transfer Time 20 ms Connection Type 1 Pole Breaker
