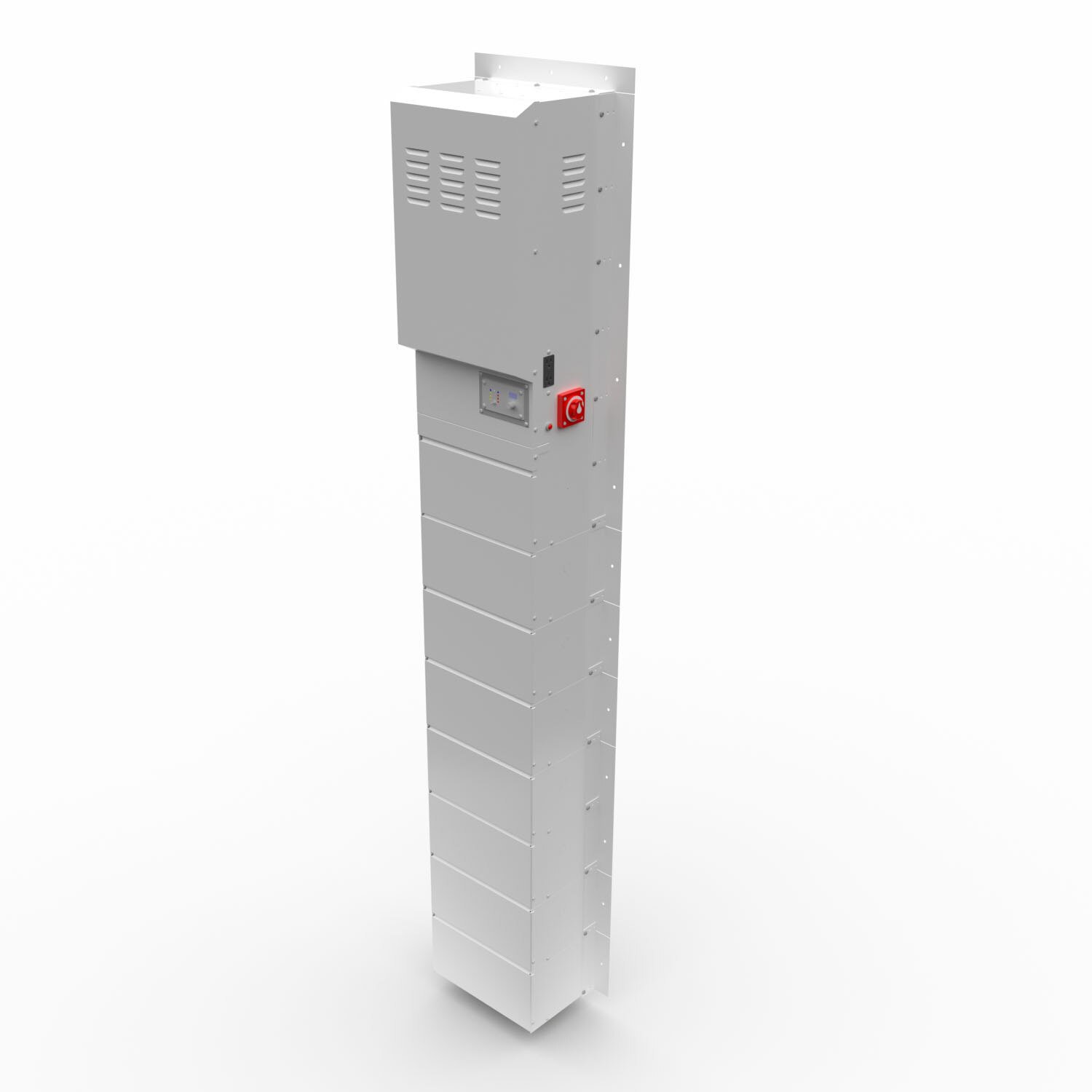

SSA5080V
General Product Information

Product Series: Silent Sentry (Wall Mounted)
Output: 5000 Watts / kW
Battery Capacity: 9.6 kWh

Product Overview

Our SSA5080V UPS system delivers 5000 watts of Single-phase power with a 9.6 KWH battery bank, ready to activate instantly during an outage.

This standalone system features a plug-and-play design that installs easily without permits or licensed contractors and requires little to no floor space.
Wiring Diagram
281 FIELDS LANE - SUITE 2B - BREWSTER, NY 10509 1-800-765-3237 | www.mediproducts.net
SSA5080V
AC Electrical Specifications
General AC Input Line Power Output Load Power
Wattage 5000 Voltage 120 Voltage 120
Phase Type Single Conductor Size 10 AWG Conductor Size 12 AWG
Surge Wattage 10000 Amperage 30 Amperage 20
Frequency 60 Wire Configuration Hot, Neutral, Ground Wire Configuration Hot, Neutral, Ground
Waveform Pure Connection Spec Outlets/Breakers 0
Transfer Time 20 ms Connection Type Duplex Receptacle NEMA 5-20R
