MHW6080V
General Product Information

Product Series: Reassurance (Stationary)
Output: 6000 Watts / kW
Battery Capacity: 9.6 kWh

Product Overview

Our MHW6080V UPS system delivers 6000 watts of Split-phase power with a 9.6 KWH battery bank, ready to activate instantly during an outage.

This free standing hardwire system wheels into place and with a single branch output it easily integrates into your building’s electrical system. Its compact design makes it suitable for places where space is limited while its bigger capacity ensures uninterrupted power with large power and time requirements.

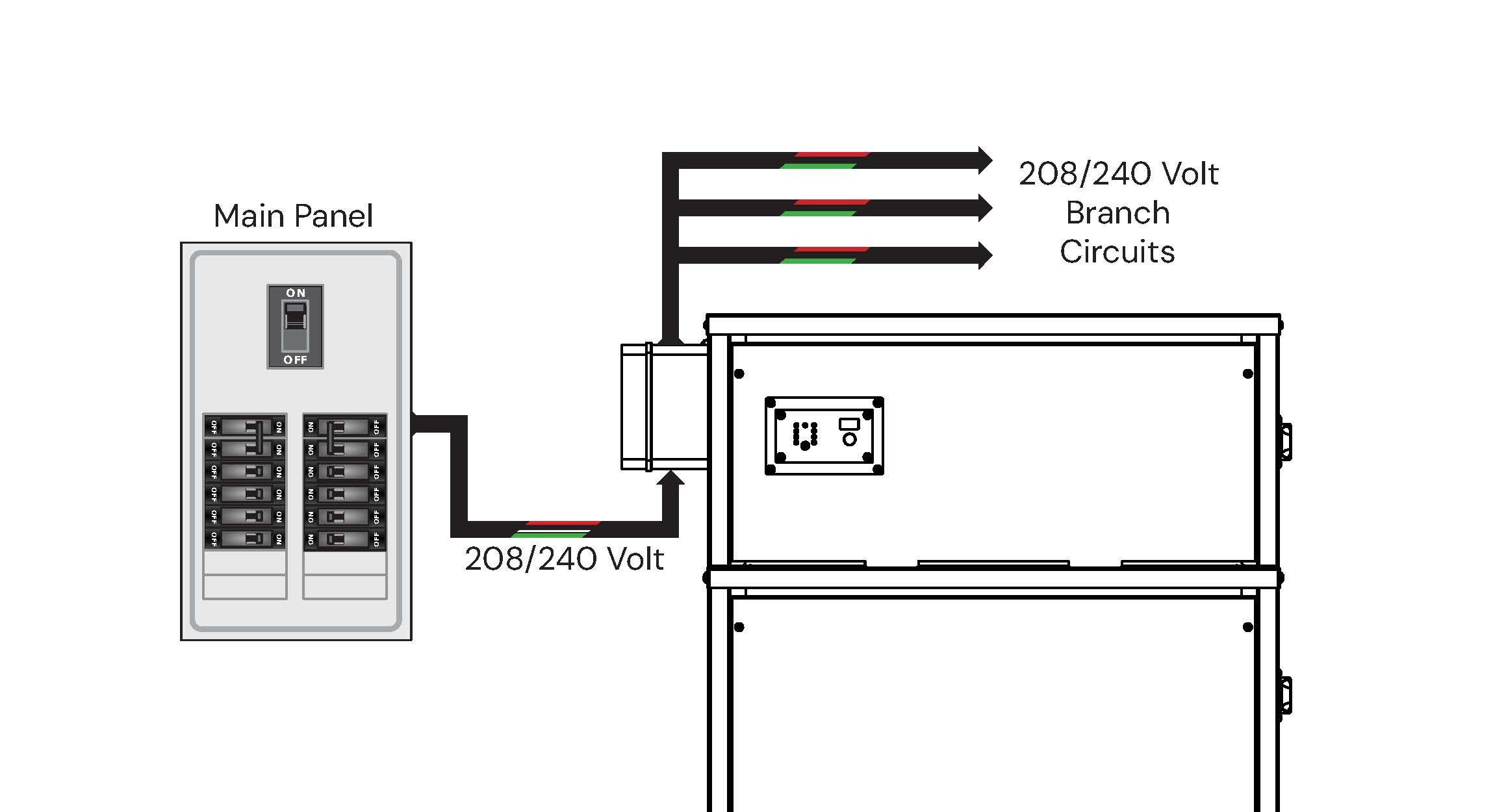

Wiring Diagram
281 FIELDS LANE - SUITE 2B - BREWSTER, NY 10509 1-800-765-3237 | www.mediproducts.net
MHW6080V
AC Electrical Specifications
General AC Input Line Power Output Load Power
Wattage 6000 Voltage Standard 208, Specify 240 Voltage Standard 208, Specify 240
Phase Type Split Conductor Size 10 AWG Conductor Size 12 AWG
Surge Wattage 12000 Amperage 30 Amperage 20
Frequency 60 Wire Configuration Hot, Hot, Neutral, Ground Wire Configuration Hot, Hot, Neutral, Ground
Waveform Pure Connection Spec Terminal Block Outlets/Breakers 0
Transfer Time 20 ms Connection Type 2 Pole Breaker
